Series 10 Top Mounted Level Switch
The Compac Engineering ERECTA SWITCH Series 10 Liquid level system uses a modular design to reduce OEM engineering cost, hardware cost and labor cost. Special accessories , extended stems with 1/4 NPT Nipples, multi-level and temperature switch's all originate from stock parts making them inexpensive, and readily available . All Compac Engineering ERECTA SWITCH solutions are manufactured in Polypropylene, Acetal and corrosion resistant PVDF Kynar.
| FLOAT BUOYANCY IN SPECIFIC GRAVITY 1.0 | |||||||
|
Inches
|
MM
|
||||||
| Float |
pp
|
AC
|
KR
|
pp
|
AC
|
KR
|
Medium
|
| Exposed |
.4
|
.35
|
.2
|
10.16
|
8.89
|
5.08
|
air
|
| Submerged |
.6
|
.65
|
.8
|
15.24
|
16.51
|
20.32
|
Water
|
| Height |
1.0
|
1.0
|
1.0
|
25.4
|
25.4
|
25.4
|
---
|
| ELECTRICAL RATINGS | |||||||
| Contact rating | 0.8 AMP, 120V, 60 Hz, Resistive 0.4 AMP, 240V, 60 Hz, Resistive 3.36 VA, 240V, 60 Hz Pilot Duty |
||||||
| DC | 1 AMP Max @ 24 VDC Resistive | ||||||
| APPLICATION ENVIRONMENT | |||||||
| Pressure | 200 PSI MAX @ 20°C | Derate, Zero @ 90°C | |||||
| Temperature | 90°C MAX |
---
|
|||||
| Mounting Position | Any W/Spring | Vert WO/Spring | |||||
| Liquid / Gas | Clear | Low Viscosity | |||||
| MATERIALS OF CONSTRUCTION | |||||||
| All Models [PP] | Polypropylene(Gray & black) | ||||||
| All Models [AC] | Acetal, Delrin (Red) | ||||||
| All Models [KR] | Kynar, PVDF (Natural) | ||||||
- Regular price
- $24.00
- Sale price
- $24.00
- Regular price
- $24.00
- Sale price
- $24.00
10-782-PP Erecta Switch Polypropylene Vertical Level Switch.
The 10-782-PP Level Switch is a versatile and reliable device that can detect liquid level changes in various applications. Whether you ...
- Regular price
- $50.09
- Sale price
- $48.00
- Regular price
- $50.09
- Sale price
- $48.00
10-782-KR Level Switch (PVDF Kynar)
The 10-782-KR Level Switch is a versatile and reliable device that can detect liquid level changes in various applications. It can be used as a stand-alone switc...
- Regular price
- $37.77
- Sale price
- $37.77
- Regular price
- $37.77
- Sale price
- $37.77
Erecta Switch 10-795-PP Polypropylene Shielded Vertical Level Switch.
- Regular price
- $79.77
- Sale price
- $79.77
- Regular price
- $79.77
- Sale price
- $79.77

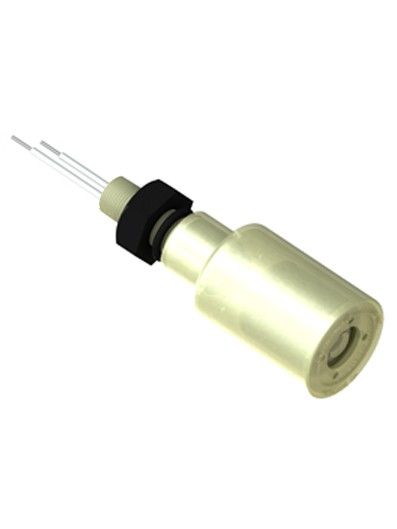

Erecta Switch 10-795-KR Shielded Kynar Vertical Level Switch
- Regular price
- $22.00
- Sale price
- $22.00
- Regular price
- $22.00
- Sale price
- $22.00
Erecta Switch 10-792-PP Polypropylene Vertical 1/4" Bulkhead Mount Level Switch.
- Regular price
- $46.00
- Sale price
- $46.00
- Regular price
- $46.00
- Sale price
- $46.00

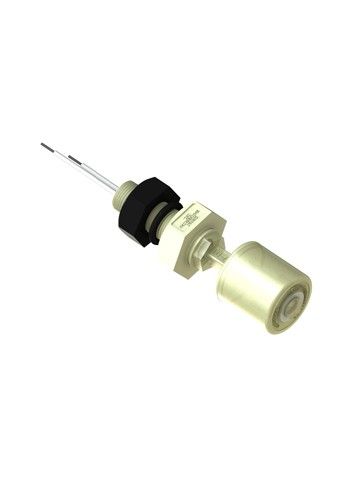

Erecta Switch 10-792-KR Vertical Bulkhead Mount Kynar Level Switch with Slosh Shield
- Regular price
- $26.00
- Sale price
- $26.00
- Regular price
- $26.00
- Sale price
- $26.00

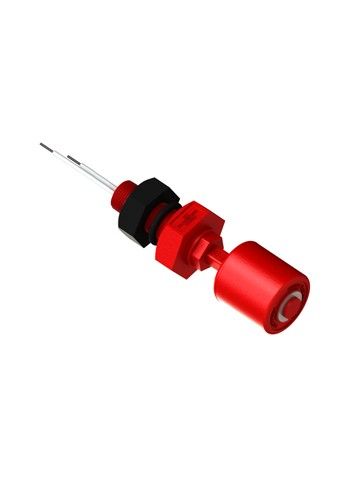

Erecta Switch 10-792-AC Vertical Bulkhead Mount Acetyl Level Switch with Slosh Shield.
- Regular price
- $46.77
- Sale price
- $46.77
- Regular price
- $46.77
- Sale price
- $46.77

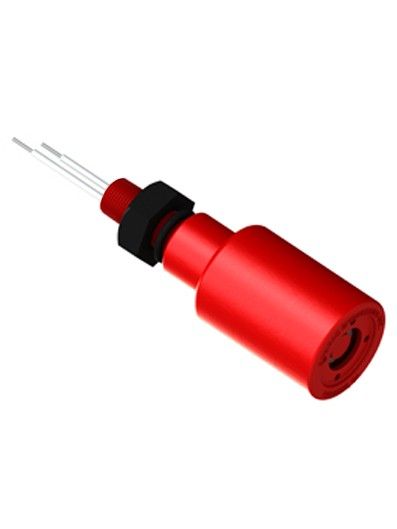

Erecta Switch 10-795-AC Acetyl Shielded Vertical Level Switch10-795 Shielded Level SwitchThe 10-795 Shielded Verticle Mounted Switch Set adds a 1/4" bulk head fitting and slosh shield to the 10-782...
- Regular price
- $20.00
- Sale price
- $20.00
- Regular price
- $20.00
- Sale price
- $20.00
10-782-AC Erecta Switch Acetyl Vertical Mount Level SwitchAlso known as 10782AC, 10 782 AC
