Side Mounted Level Switch 15-650

The ERECTA SWITCH 15-650 miniature side mounted liquid level switch is the primary switching element of the ERECTA SWITCH Series 15 product group. It has centerline symetrical design with 1/2" NPT thread intended for "outside" —> "in" mounting. In such mounting, the available 1/4" thread may be useful in connecting ERECTA SWITCH wiring receptacles, audible alarms, and conduit fittings. The 1/4" thread is useful for "inside" —> "out" mounting using the O-ring seal and jam nut provided. This pilot load switching device is recognized by the UL component recognition program. It is a single-pole, single-throw switch which can be configured to perform either normally open or normally closed function.


ELECTRICAL RATINGS
Contact rating	0.8 AMP, 120V, 60 Hz, Resistive 0.4 AMP, 240V, 60 Hz, Resistive 3.36 VA, 240V, 60 Hz Pilot Duty
DC	1 AMP Max @ 24 VDC Resistive
APPLICATION ENVIRONMENT
Pressure (Hollow Float)	50 PSI MAX @ 20°C	Derate, Zero @ 90°C
Temperature	90°C MAX	---
Specific Gravity	0.8 MIN	Clear Liquid
Position Extreme	15° Cant MAX	Off Vertical
MATERIALS OF CONSTRUCTION

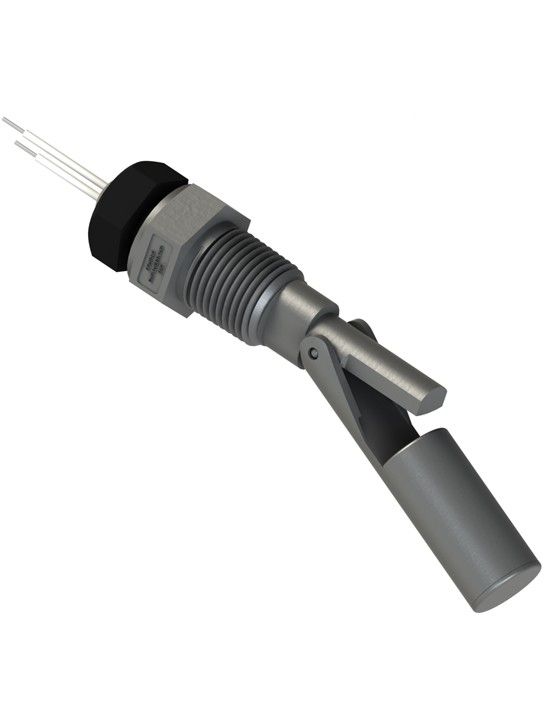

All Models [PP]	Polypropylene (Gray)

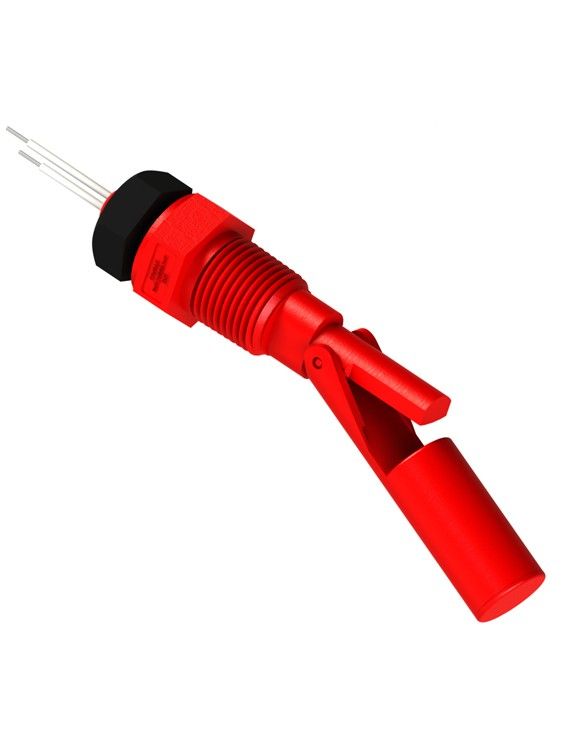

All Models [AC]	Acetal (Red)

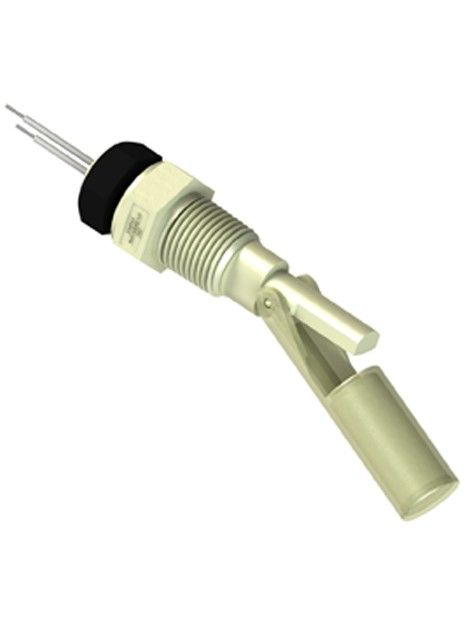

All Models [KR]	Kynar, PVDF (Natural)
